Parameters
Part Type
replacement
Manufacturer Part Number
1244-5565 12445565, 56774-03, T114858GT, 94474-04,GN94474-04, 9447404,GN9447404,128334GT
Interchange Part Number
1244-5565 12445565
Compatibility
| Make | Model | Year | Trim | Engine | Notes |
|---|---|---|---|---|---|
 No Data Yet | |||||
€ 390.14
Market Price: €513.47 0 People Puchased
Free Delivery

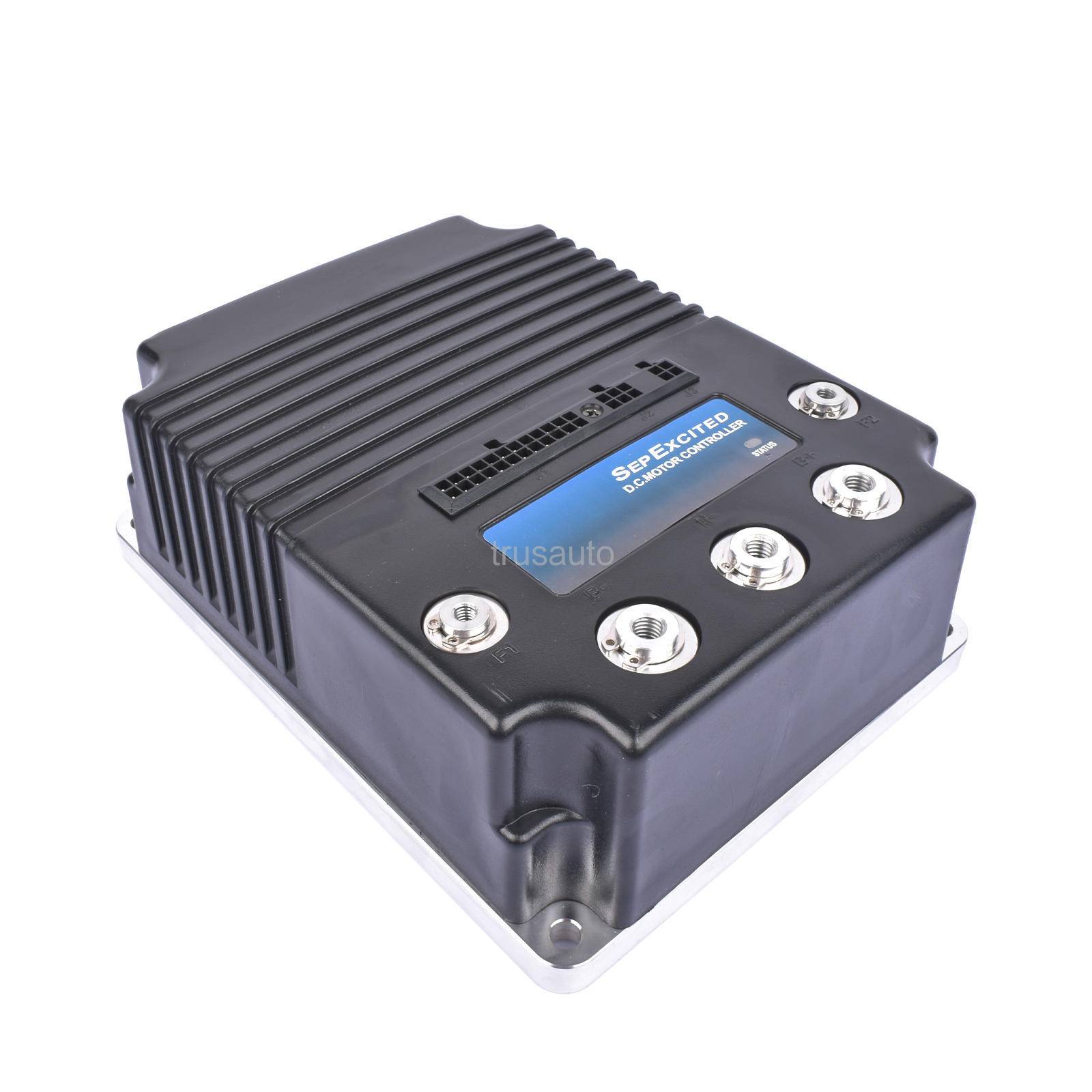

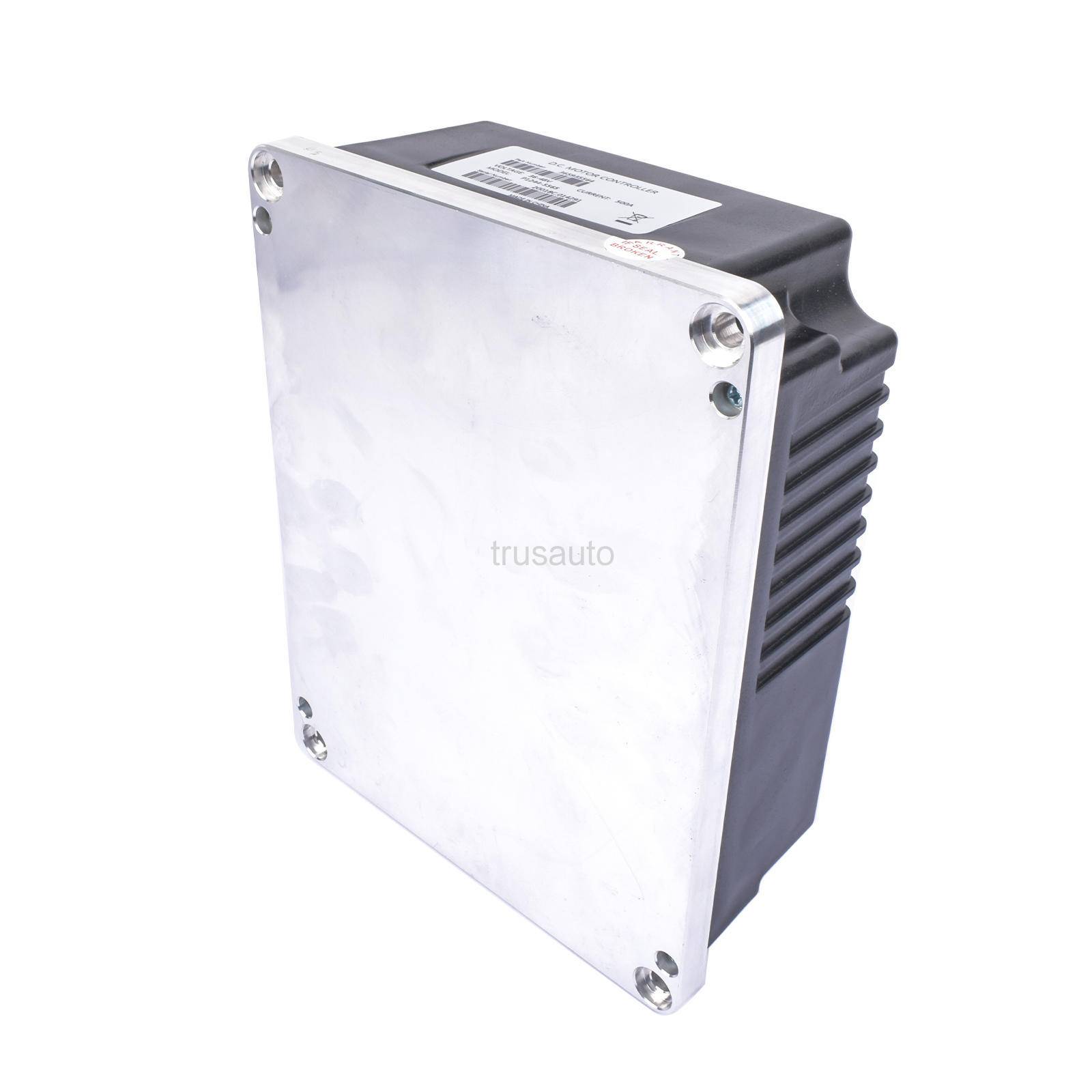

Motor Controller for Curtis Forklift Golf Cart 36-48V 500A 5K-0 1244-5565 New
Quantity:
-
+
If you have a large demand for this product, please send an email to sale@trusauto.eu, and we will contact you as soon as possible.
Expected shipping date : Shipped on the second business day.
Shipping cost : For shipping within the United States, most regions are eligible for free delivery, with only a few remote areas subject to pricing based on specific shipping rules.
Return : 60 days returns. Buyer pays for return shipping.
Protection : within 2 years.
€ 390.14
Market Price: €513.47 0 People Puchased
Free Delivery
Motor Controller for Curtis Forklift Golf Cart 36-48V 500A 5K-0 1244-5565 New
Quantity:
-
+
If you have a large demand for this product, please send an email to sale@trusauto.eu, and we will contact you as soon as possible.
OE Number
1244-5565
56774-03
T114858GT
Compatible with Following Models
Fitment: for Curtis Controller Electric Forklift Golf Cart 36-48V 500A 5K-0
for Genie Boom Lift:Z-30/20N,Z-30/20N RJ
Specifications:
PWM operating frequency: 16 kHz
Electrical isolation to heatsink (min.): 500 VAC
KSI input current (no contactors engaged):
160 mA without programmer
200 mA with programmer
Logic input voltage: >7.5 V High; <1 V Low
Logic input current: 10 mA
Operating ambient temperature range: -40°C to 50°C
Heatsink overtemperature cutback: 85°C
Heatsink undertemperature cutback: -25°C
Package environmental rating: IP64 / IP67
Key Features:
CURTIS Model: 1244-5565
Norminal Battery Voltage (Volts): 36-48V
Amature Current Limit (amps): 500
Amature 2 Minute Current Rating (amps): 500
Amature 1 Hour Current Rating (amps): 160
Field 2 Minute Current Rating (amps): 50
