Parameters
Part Type
replacement
Manufacturer Part Number
1204M-5305
Interchange Part Number
1204M-5305
Compatibility
| Make | Model | Year | Trim | Engine | Notes |
|---|---|---|---|---|---|
 No Data Yet | |||||
€ 74.82
Market Price: €115.92 0 People Puchased
Free Delivery

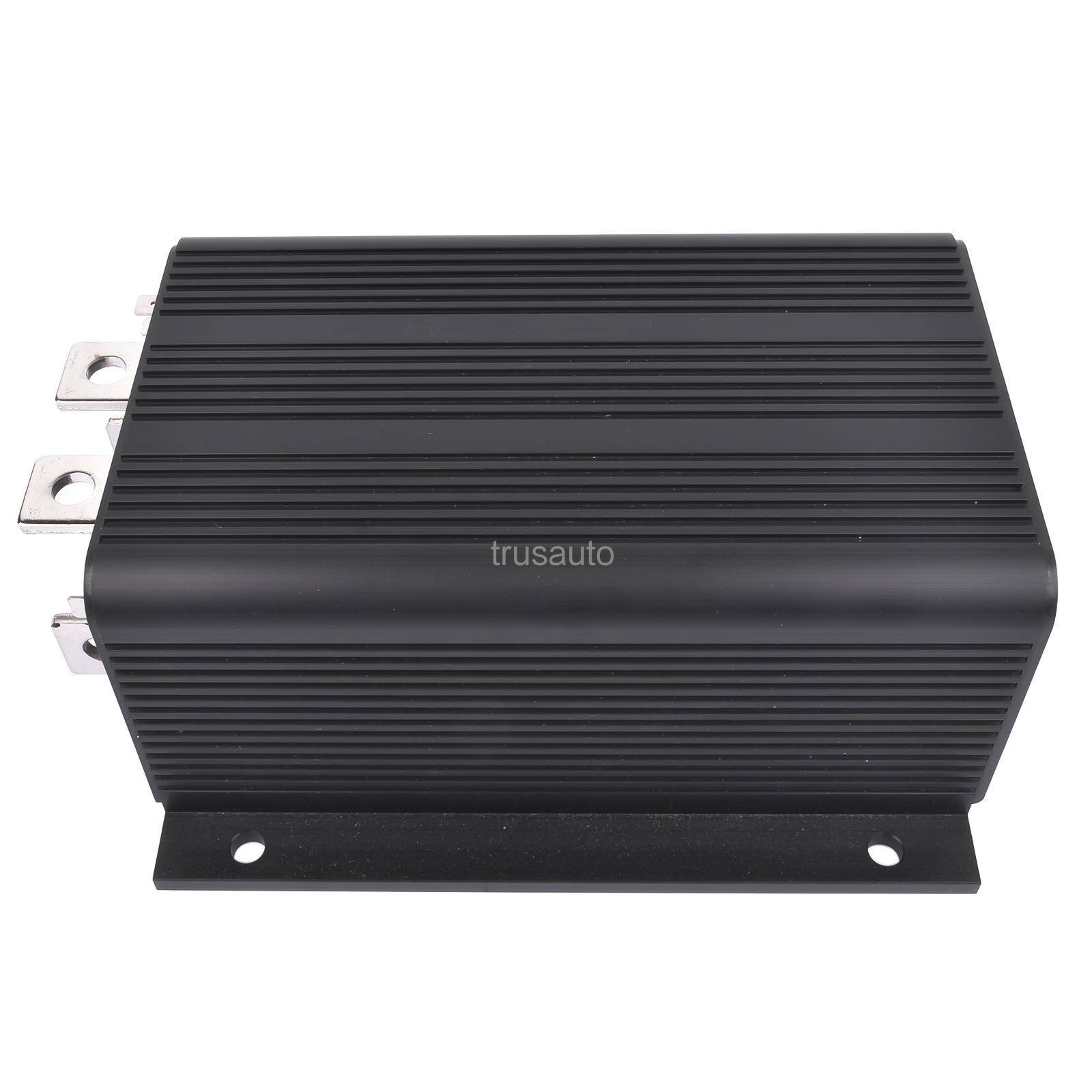

PMC 1204M-5305 DC Motor Controller Upgraded 1204M-5301 for Curtis 48V 325A 0-5K
Quantity:
-
+
If you have a large demand for this product, please send an email to sale@trusauto.eu, and we will contact you as soon as possible.
Expected shipping date : Shipped on the second business day.
Shipping cost : For shipping within the United States, most regions are eligible for free delivery, with only a few remote areas subject to pricing based on specific shipping rules.
Return : 60 days returns. Buyer pays for return shipping.
Protection : within 2 years.
€ 74.82
Market Price: €115.92 0 People Puchased
Free Delivery
PMC 1204M-5305 DC Motor Controller Upgraded 1204M-5301 for Curtis 48V 325A 0-5K
Quantity:
-
+
If you have a large demand for this product, please send an email to sale@trusauto.eu, and we will contact you as soon as possible.
OE Number
1204M-5305
1204M-5301
Key Features
Model: 1204M-5301
Norminal Battery Voltage (Volts):48V. the throttle type 0-5kΩ.
2 Minute Current Rating (amps): 325
5 Second Boost Current (amps): 375
1 Hour Current Rating (amps): 140
Plug Braking (A2 Busbar): Yes

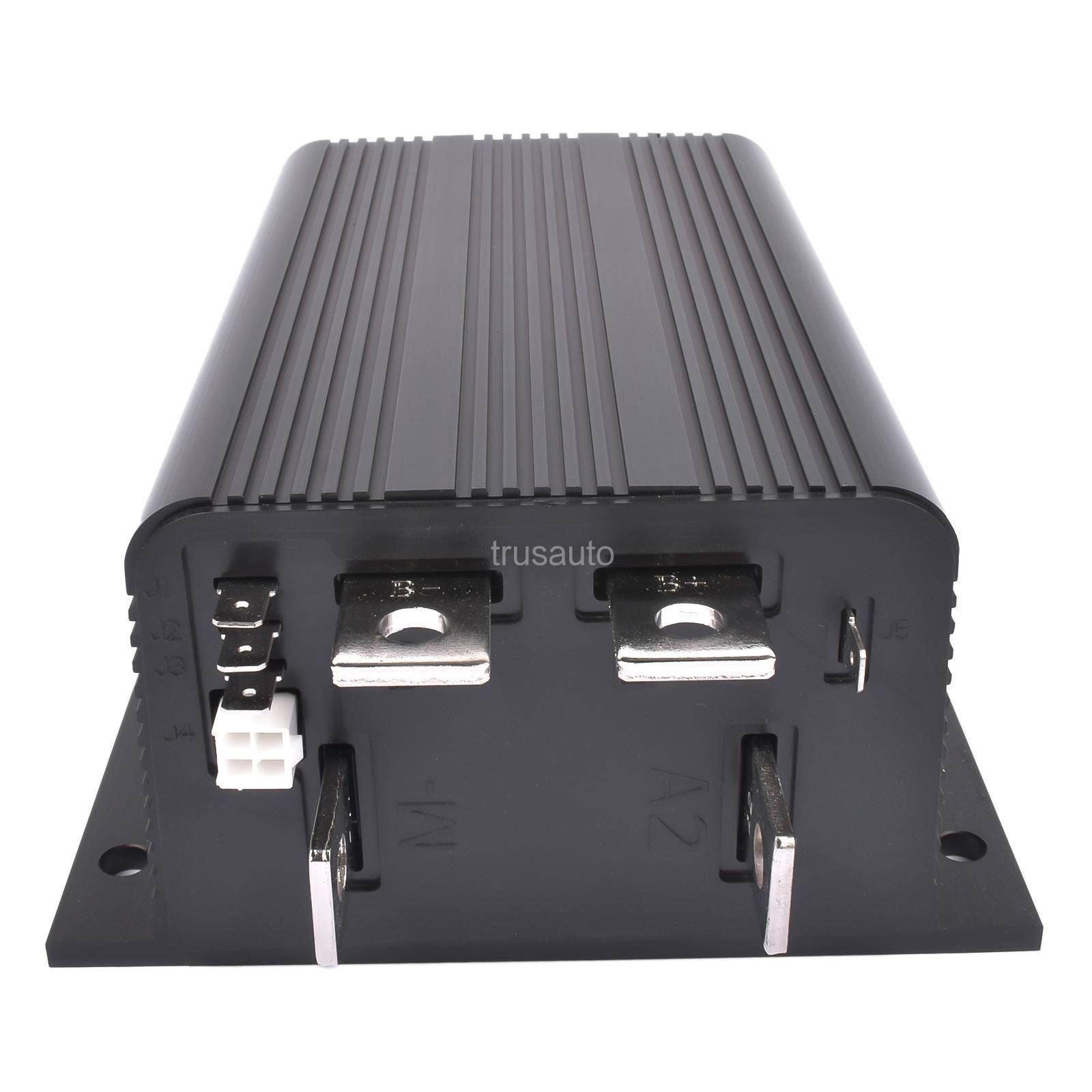

Important information: 1204M-5305 is the upgraded version of 1204M-5301 controller, providing new functions "reverse signal output / main contactor coil driver" through the 6.35 mm push-on terminal J5. 1204M-5303 supports more throttle types.
SPECIFICATIONS
- 1204M CONTROLLERS
- Nominal input voltage: 48 V
- PWM operating frequency: 15 kHz
- Electrical isolation to heatsink (min.): 500 V
- KSI input current (no contactors engaged): < 60 mA without programmer; <130 mA with programmer
- Logic input current: <1 mA
- Status LED output current (max.): 2 mA
- Throttle type: 2-wire 5kΩ – 0
- Storage ambient temperature range: -40°C to 85°C (-40°F to 185°F)
- Operating ambient temp. range: -40°C to 50°C (-40°F to 122°F)
- Package environmental rating: ISTA 2A; electronics sealed to IP65
- Dimensions (L× W×H) about : 174 × 146 × 77 mm
- Regulatory compliance: Safety — Designed to the requirements of EN 1175; EMC — - Designed to the requirements of EN 12895 and EN 61000.
